System Design Patterns: A Lunch-Tray Map

System design interviews sound scary.

They are mostly picking the right pattern for the problem.

This map covers the core ones — why each exists, when to reach for it, and a tiny picture in your head.

flowchart TB
  A[Your app gets busy] --> B{What hurts?}
  B -->|too many reads| C[Read-heavy patterns]
  B -->|too many writes| D[Write patterns]
  B -->|services tangled| E[Decouple patterns]
  B -->|jobs take forever| F[Long-task patterns]
  B -->|things break| G[Failure patterns]
  B -->|data too big| H[Distribute patterns]
  B -->|need live updates| I[Realtime patterns]

Seven groups of patterns for seven kinds of pain

Name the pain. Then pick the pattern.

1. Read-heavy systems

Pain: millions of people ask for the same thing. The database sweats.

Pattern	In plain English	What it does
Caching	Keep hot data close	Reuse frequently requested data
Read replicas	Extra copies of the database for readers	Offload reads to database copies
Indexing	A lookup structure	Accelerate selective lookups

flowchart LR
  U[User asks] --> C{In the cache?}
  C -->|yes| F[Fast answer]
  C -->|no| D[Ask the database]
  D --> C2[Put a copy in the cache]

Hot data stays in a nearby cache

Watch out: a cache can go stale. Replicas can lag the primary by a little.

2. Write bottlenecks

Pain: everyone wants to save at once. One writer is too slow.

Pattern	In plain English	What it does
Batching	Group many writes into one trip	Reduce per-write overhead
Async processing	Accept now, finish later	Move work off the request path
Sharding	Split writes across many stores	Spread writes across data shards

Many writes share one batch

Watch out: batching adds a tiny wait. Async means the user might see “pending.” Sharding needs a rule for which shard owns which row.

3. Decouple services

Pain: Service A calls Service B, which calls C… one failure breaks the chain.

Pattern	In plain English	What it does
Message queues	A buffer between services	Buffer messages between services
Event-driven architecture	Publish a change; others react	React to published events
Pub/Sub	One event, many listeners	Deliver events to subscribers

flowchart LR
  A[Service A] -->|put message| Q[Queue]
  Q --> B[Service B]
  Q --> C[Service C]

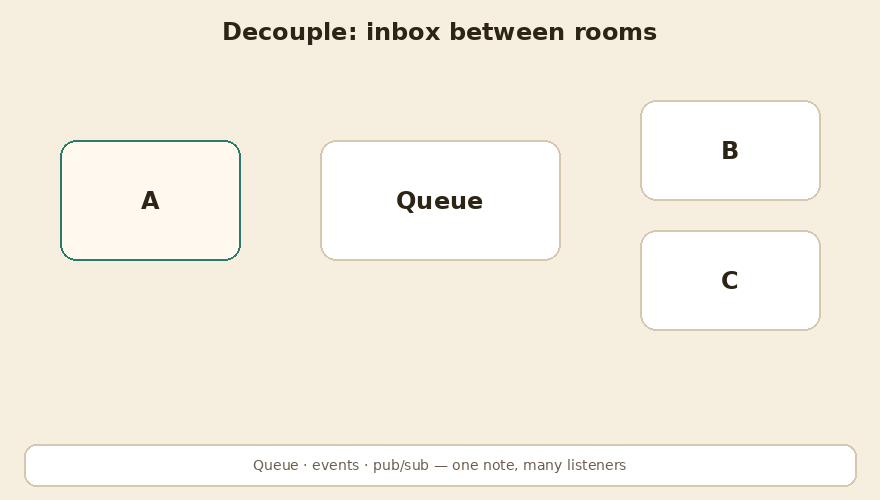

A queue between services keeps them from calling each other directly

Watch out: queues need retries and dead-letter queues for stuck messages.

4. Long-running tasks

Pain: the user waits while you run a huge job.

Pattern	In plain English	What it does
Background workers	Work outside the request	Run work outside the request
Job queues	A list of jobs for workers	Queue jobs for available workers
Workflow engines	Steps, state, and retries	Coordinate steps, state and retries

The request returns; the worker finishes later

Watch out: tell the user a job id so they can check later. Workflows must remember which step already finished.

5. Handle failures

Pain: the network hiccups. Bad code retries forever and makes it worse.

Pattern	In plain English	What it does
Retries with backoff	Wait longer between tries	Retry with increasing delays
Timeouts	Stop waiting after a limit	Limit the caller’s waiting time
Circuit breakers	Stop calling a failing dependency	Temporarily block failing calls
Idempotency	Same request twice → one effect	Repeat calls; keep the same effect

Backoff, timeout, circuit breaker, and one effect for two identical requests

Retry gently. Stop waiting. Trip the breaker. Same request, same result.

6. Distribute data

Pain: one database cannot hold the whole dataset.

Pattern	In plain English	What it does
Partitioning	Split one dataset into subsets	Split data into subsets
Sharding	Put those subsets on different nodes	Store subsets on different nodes
Consistent hashing	Add a node without moving every key	Limit remapping as nodes change

Data split across nodes, with less reshuffle when a node is added

Watch out: cross-shard queries are harder. Plan how you pick the shard key (user id, region, …).

7. Real-time updates

Pain: the user wants news now, not on refresh.

Pattern	In plain English	What it does
WebSockets	A two-way channel	Keep a two-way channel open
Server-Sent Events	Server pushes events one way	Stream server events to the client
Long polling	Client waits, then asks again	Wait, respond, request again

Two-way channel, one-way stream, and ask-again loops

Quick pick: chat / games → WebSockets. One-way live feed → SSE. Old clients → long polling.

Interview cheat card

If they say…	Reach for…
Hot reads	Cache → replicas → indexes
Hot writes	Batch → async → shard
Tight coupling	Queue / events / pub-sub
Slow request	Workers + job queue (+ workflow)
Flaky deps	Timeout, backoff, breaker, idempotency
Huge data	Partition / shard / consistent hash
Live UI	WebSocket / SSE / long poll

Honest caveats

Patterns are tools, not stickers. Wrong tool hurts.
Every pattern adds ops cost: monitoring, failure modes, money.
The common list is a checklist. This post is the why.
We did not invent these patterns; they are common industry practice.

Sources

Standard public system-design interview guides (caching, replicas, queues, breakers, sharding, realtime transports) used to expand each one-liner into why and when.

In short

Name the pain. Pick the pattern. Read-heavy → cache, replicas, indexes. Write-heavy → batch, async, shard. Untangle with queues and events. Long work leaves the request. Failures need timeouts, gentle retries, circuit breakers, and idempotency. Big data spreads across shards. Live updates use WebSockets, SSE, or long polling.
